Description of station PAF

Working station

 Network: G
 Network description: GEOSCOPE - French Global Network of Seismological Broadband Stations
 Site name: Port aux Francais - Kerguelen - TAAF, France
 Start: 1983-01-01T00:00:00
 End: -
 Latitude: -49.351 °
 Longitude: 70.210708 °
 Elevation: 17 (m)

 Site description
Site description not yet available.

 Station comments
Station comments Start End
 Maintenance in progress 2024-03-30 03:03:00 2024-04-03 00:04:00
 Maintenance in progress 2023-04-02 11:04:00 2023-04-04 08:04:00
 Maintenance in progress. 2017-03-31 06:03:00 2017-04-06 00:04:00
 Maintenance in progress. 2016-04-18 12:04:00 2016-04-22 00:04:00
 Station is down. 2013-03-11 11:03:53 2013-09-16 00:09:00
 Many locid 10 data lost 2012-06-20 16:06:00 2012-06-24 00:06:00
 The locid 10 data lost due to network problems 2012-03-21 22:03:00 2012-03-22 21:03:00
 The locid 10 data lost due to network problems 2012-01-25 03:01:00 2012-01-29 22:01:16
 Occasional data loss due to transmission issues 2011-08-24 10:08:00 2011-08-25 00:08:00
 Occasional data loss due to network problems 2011-03-25 20:03:00 2011-03-27 18:03:00
 Occasional locid 00 data lost 2010-10-02 00:10:00 2010-10-16 16:10:00
 Station is down. 2009-05-25 15:05:00 2009-05-28 05:05:00
 Station is down. 2009-05-22 12:05:00 2009-05-25 12:05:00
 Occasional data loss 1996-03-24 23:03:00 1996-07-30 00:07:00
 Frequent data loss 1995-01-12 10:01:00 1995-12-03 00:12:00
 Station is down. 1993-09-05 07:09:00 1993-12-20 11:12:00
 Frequent data loss 1991-10-27 22:10:00 1992-01-08 23:01:59
 Frequent data loss 1983-08-01 23:08:00 1987-12-31 23:12:59
 Error on sensors poles may reach 2 percent. 1983-01-01 00:01:00 -
 Sensors responses contain nominal values. 1983-01-01 00:01:00 -

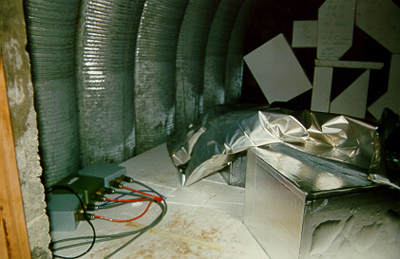

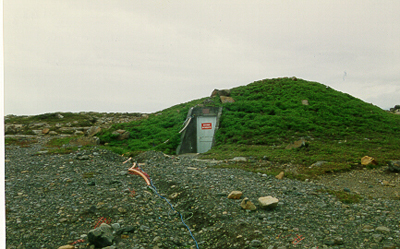

  Station pictures

List of the channels available for the station PAF

Click on channel to get the complete description


 List of the channels available for the location code "00"

BHE BHN BHZ LHE LHN LHZ LKI VHE VHN VHZ


 List of the channels available for the location code "10"

BHE BHN BHZ LHE LHN LHZ


 List of the channels available for the location code ""

BHE BHN BHZ LHE LHN LHZ MHE MHN MHZ VHE VHN VHZ


Sensors available at station PAF


Seismometer


Temperature


 Station noise spectrum for the day (Last station noise spectrum available)

 Station noise spectrum by day for a year
  Select a year :
 Station noise variation for year

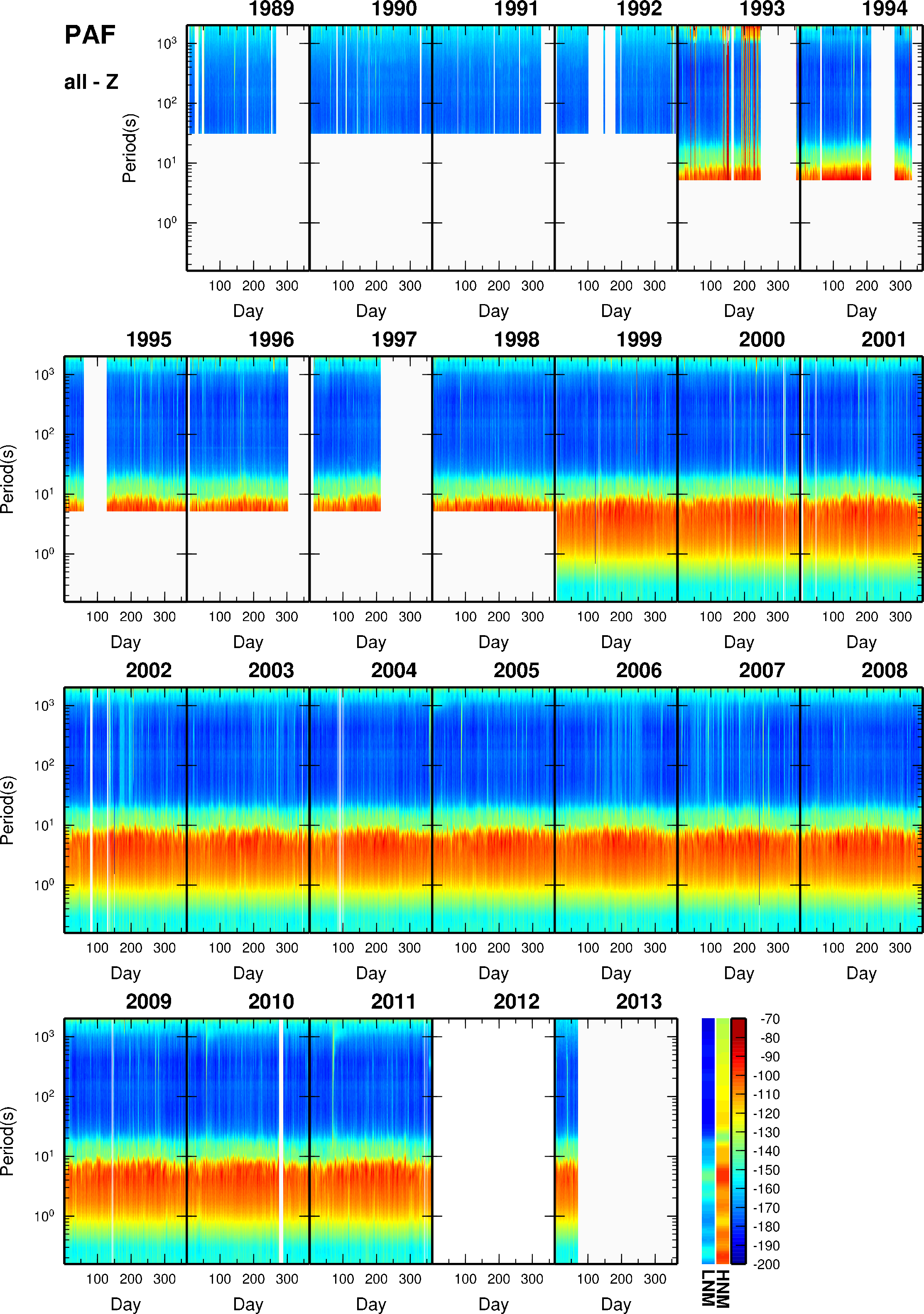

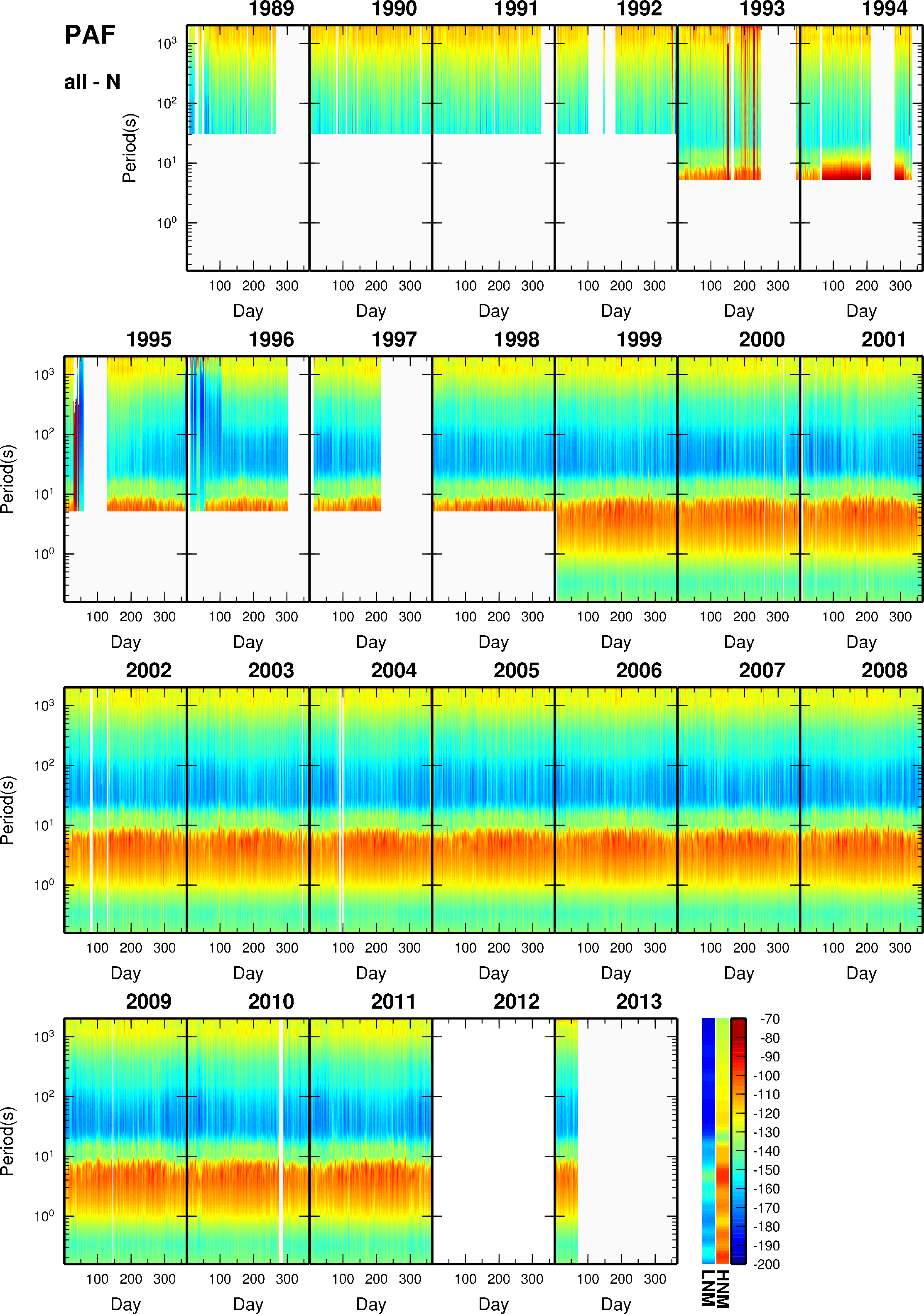

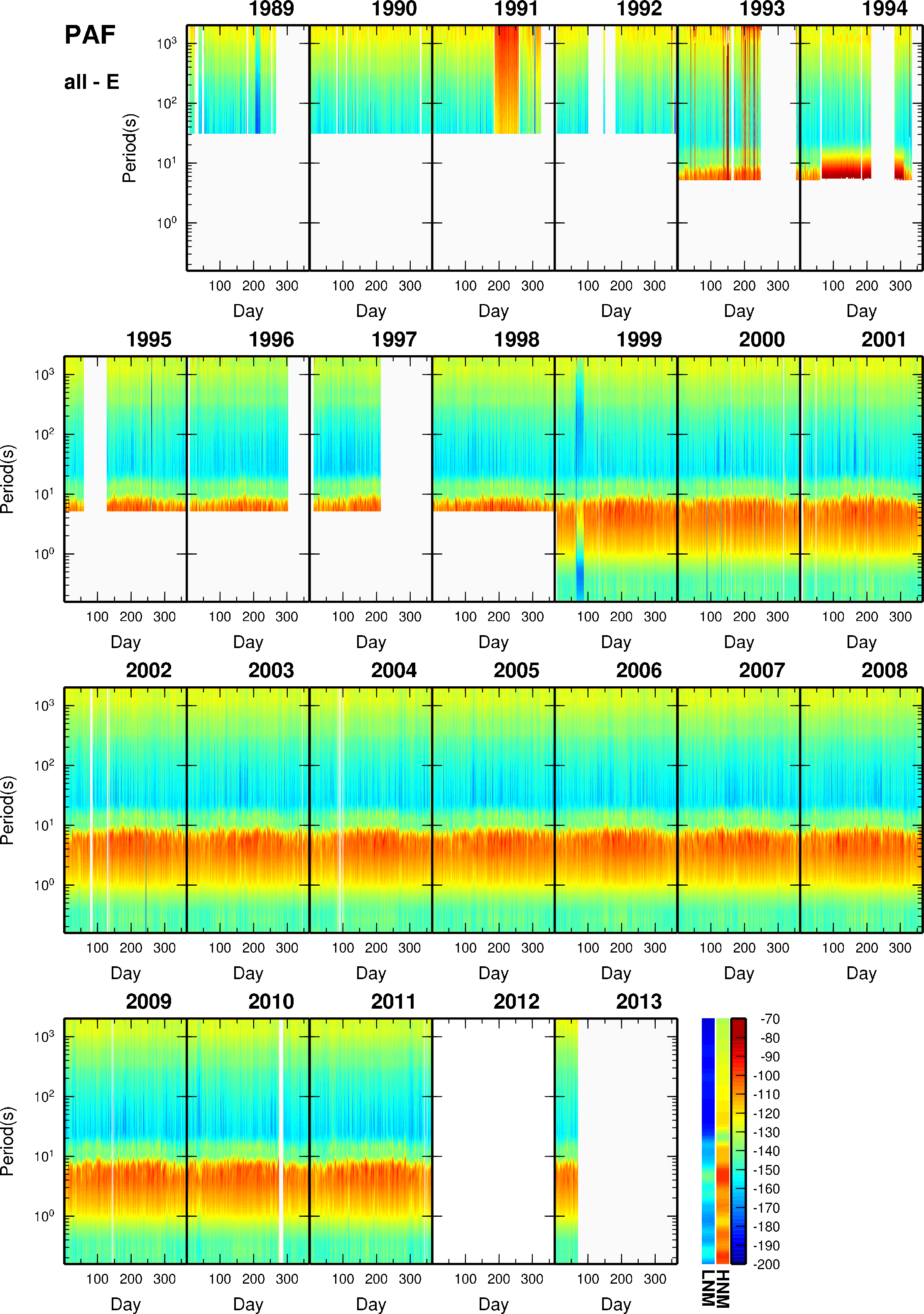

 Station noise variation since the start of the station.

East-West componentNorth-South componentVertical component
